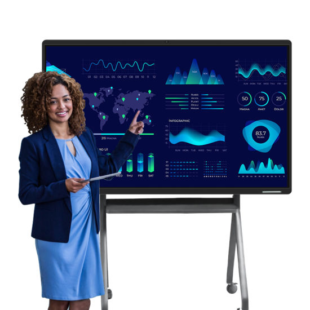

Interactive Smart Boards 75”
Original price was: ₹240,000.00.₹98,000.00Current price is: ₹98,000.00.
SMART INTERACTIVE DISPLAY TECHNOLOGY FOR ANY ENVIRONMENT.
MORE THAN JUST A DISPLAY.

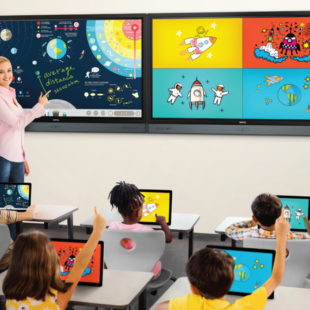

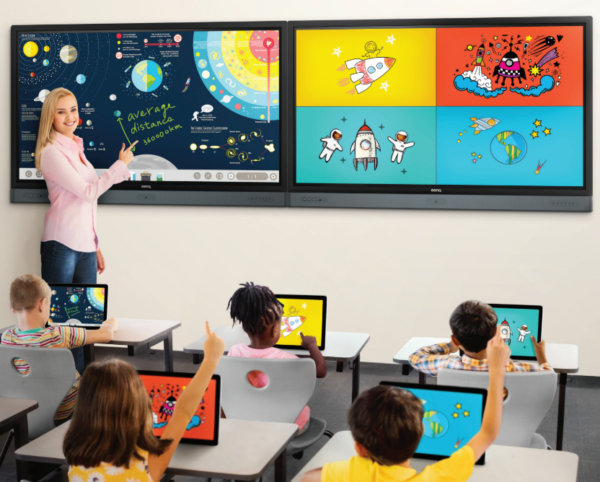

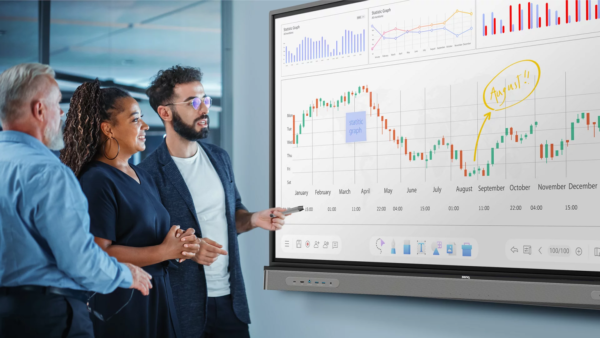

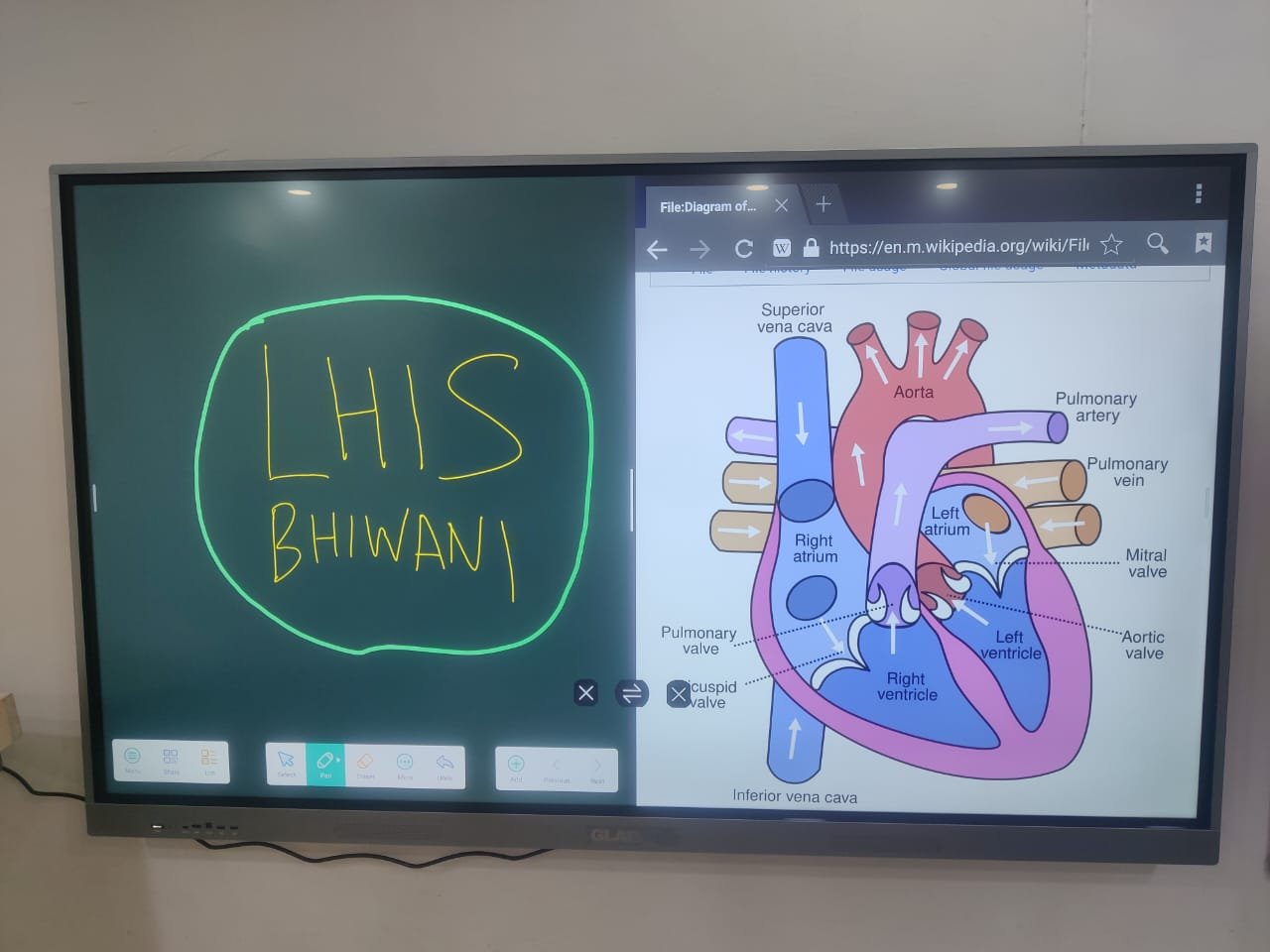

Touch interactivity and collaboration are brought to life with the brilliance of our ultra-high definition INTERACTIVE FLAT PANEL WITH ANDROID AND WINDOWS OPERATING SYSTEM. our products take the lead in these flexible, multi-functional solutions with ultra-4K resolution, accurate on-screen writing, built-in whiteboard software, and wireless screen projection, satisfying the needs of a variety of applications. Discover our Smart range with unique features, combined with powerful applications and software, uniquely designed for collaboration in any education, business or collaborative environment.
Add to cart
Buy Now
Screen Size- 75”
Image Scale -16:9
Brightness – 400cd/m^2
Touch Panel – 4mm Anti-glare tempered glass
RAM- 8GB
ROM – 128GB
OS- Android -13
OPS – Windows 10/11 (optional)
| Model | ASC 75 |
| Product name | Interactive Flat Panel Displays |
| Display screen
Parameters |
|
| ScreenSize | 75″ |
| Image scale | 16:9 |
| Resolution(pixels) | 3840*2160 |
| Backlight Type | LED |
| Brightness | 400cd/㎡ |
| Contrast Ratio | 1200：1 |
| Response Time | ≤8ms |
| Refreshing Frequency | 60Hz |
| View Area(mm) | 1649.66mm(H)*927.94mm(V) |
| Viewing Angle | 178/178° |
| Color Gamut(NTSC) | 72% NTSC |
| Uniformity of brightness | ≥70% |
| Touch | |
| Touch panel | 4mm Anti-glare tempered glass |
| Recognition technology | 20 point infrared touch |
| Positional accuracy | ±1mm |
| Mode of touch | Finger or opaque objects |
| Response Time | ≤8ms |
| Connect Type | USB free drive |
| Resistance to light | 80KLux |
| Support Systems | Android/Windows |
| Hardware
Configuration |
|
| CPU/GPU | ARMCortexA55*4/ARMMali-G52MP2 |
| RAM | 8G |
| ROM | 128G |
| Expandable Storage | TF Card |
| OS | Android 13.0 |
| Network Support | Ethernet、WIFI |
|
Front button |
Whiteboard,Mirroring Multifunction, Power, Multitasking, Volume, Brightness |
| Front Interface | USB3.0*3、HDMI IN、TOUCH、Type-C |
|
Rear Interface |
HDMIIN*2、TOUCH*1、USB3.0*3、MI C
IN*1、Line OUT*1、RS232*1、AVIN*1、AVOUT*1 、COA XOUT*1、LANIN*1、LANOUT*1 、TF*1、 |
|
Video Format |
AV1MP-10、WMV/VC-
1、AVS2、H.265、VP9、H.264、MPE G-4、AVS-P16、MPEG-2、MPEG-1 |
| Loudspeaker | 2*15W |
| Power | |
| Input Power | 100~240V 50/60Hz |
| Power Consumption | ≤370W |
| Standby power
consumption |
≤0.5W |
| AC switch | YES |
| Power interface shape | □ |
| Machine parameters | |
| Color | Palladium Blue |

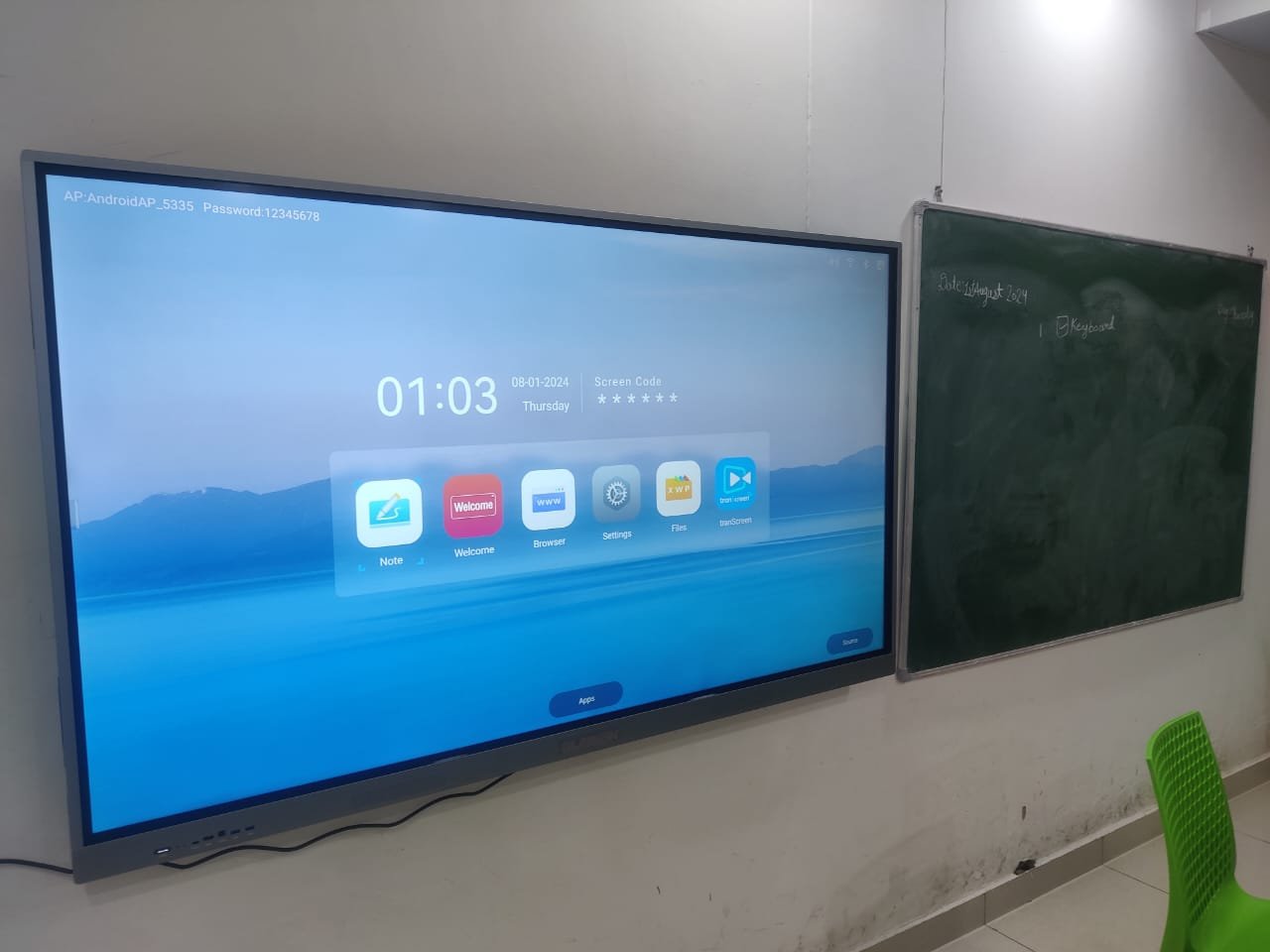

| Installation Mode | Wall mount |
| Structural material | Alumimum profile+Metal plate |
| Product Size | 1715.66(L)*1041.14(H)*103.15(T) (mm) |
| Product Size（including wall hanging） | 1715.66(L)*1041.14(H)*131.55(T) (mm) |
| package size | 1826(L)x1190(H)x215(T) (mm) |
| Wall hanging hole
distance |
600(H)*500(V) (mm） |
| Naked heavy | 55 |
| Rough weight | 70 |
| Environment
Parameters |
|
| Operating temperature | 0-50℃ |
| Operating humidity | 10-90％RH |
| Storage temperature | -20~+60℃ |
| Storage humidity | 10-90％RH |
| Service life | ≥30000Hr |
| Accessories | |
| Packaging materials | Carton |
| User Guide (including qualification certificate) | *1 |
| Remote Control | *1 |
| Touch Pen（magnet） | *2 |
| Power Cord | *1 |
| Wall Mount | *1 |
| Weight | 70 kg |
|---|---|
| Dimensions | 182.6 × 119 × 21.5 cm |
Related products

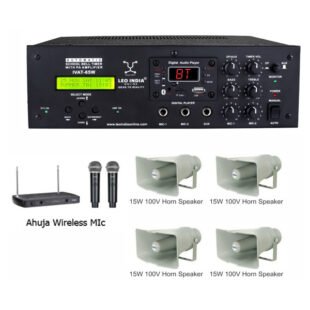

Automatic School Bell timer With PA Amplifier 65W with 4No’s Speaker and wireless mic set
Original price was: ₹55,000.00.₹33,500.00Current price is: ₹33,500.00.
Automatic School Bell timer With PA Amplifier 65W
Original price was: ₹35,000.00.₹16,500.00Current price is: ₹16,500.00.

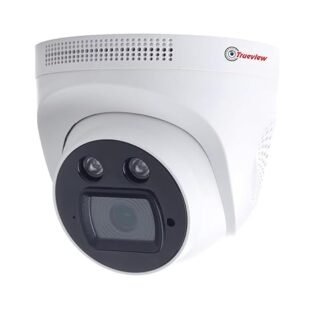

Trueview Smart Wi-Fi 3mp Indoor Dome Security Camera for Home,Shop,Office
